Model D-8606G
D-8606G Panel-Mount Stainless Steel Keyboard with Trackball
Designed for control systems that need more dedicated keys, D-8606G provides easier access to function and navigation controls without relying heavily on key combinations. The integrated trackball keeps keyboard and cursor control together within a 392 × 135 mm panel.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Industrial Automation, CNC Milling Machine, Automated Bevelling Machine, Impact Testing Unit with Control Panel
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
More Keys for Direct Control
D-8606G is a practical choice for control equipment where operators need quick access to frequently used commands. Its 86-key layout includes dedicated F1–F12 keys and additional function and navigation keys, reducing the need for key combinations during everyday operation.
The integrated trackball keeps keyboard and cursor control together in one fixed panel, without requiring a separate mouse. In addition to the standard stainless steel version, D-8606G can also be produced with a black finish or backlit keys to suit different equipment designs and operating environments.
| Front Panel Size | 392 × 135 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 86+3 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled / Through-Etched & Translucent-Filled |
| Trackball Type | Mechanical Trackball | Trackball Diameter | 38 mm Stainless Steel Ball |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: Keyboard Area IP65, Trackball IP54 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Optional | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Built for Demanding Industrial Use
Practical design features provide durable operation, reliable cursor control and everyday usability for industrial equipment.
Stainless Steel Key Surface
Metal keycaps provide a durable operating surface for equipment that is used frequently over long service periods.
38 mm Stainless Steel Trackball
The 38 mm stainless steel mechanical trackball provides a solid control surface while keeping the pointing device compact enough for panel integration.
Dedicated Mouse Buttons
Three dedicated mouse buttons provide direct click control from the keyboard panel, reducing the need for additional pointing controls around the workstation.
Rugged Industrial Construction
Built with a robust stainless steel structure, D-8606G is designed to withstand frequent operation, physical impact and the demanding conditions of industrial equipment.
Product video
See D-8606G in Detail
Take a closer look at the metal key layout, 38 mm mechanical trackball and overall construction to see whether D-8606G suits your equipment design.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
Proven in CNC & Automated Machinery
See D-8606G in real equipment installations, from CNC milling to automated bevelling systems.
Proven Across Different Machine Designs

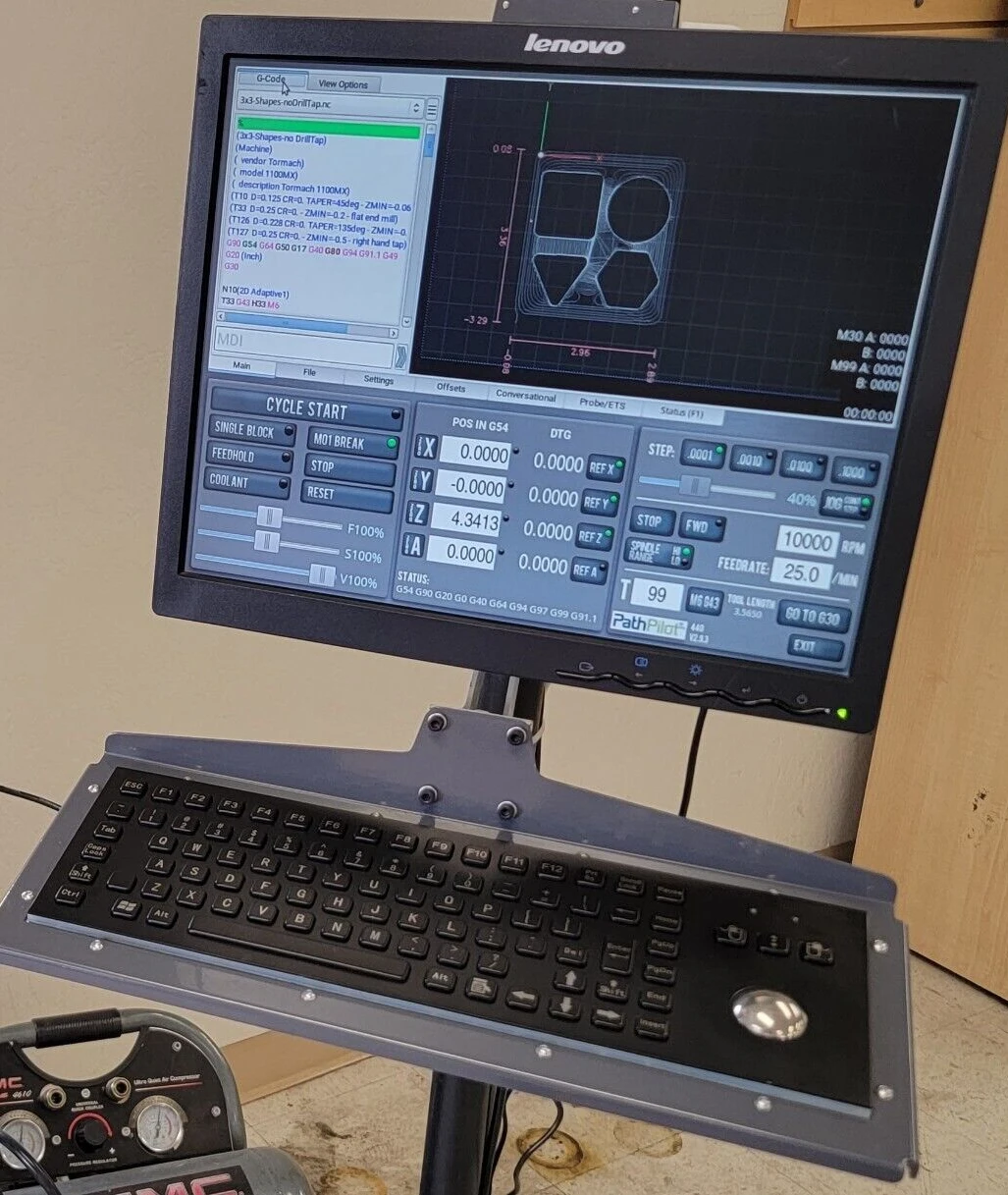

These real installations show how D-8606G fits different machine-control layouts. On a CNC milling machine, it provides physical keyboard and cursor control alongside the touchscreen for direct machine operation.

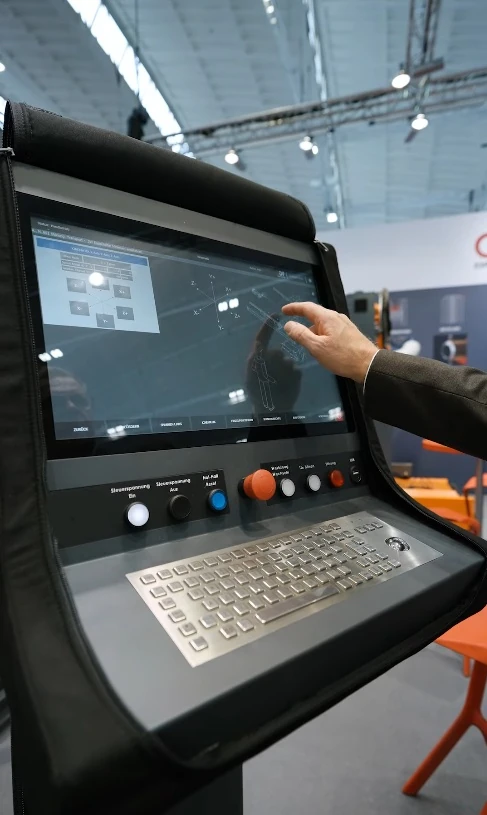

On an automated bevelling machine, D-8606G is built directly into the operator console. Both examples offer practical references for integrating keyboard and trackball control into industrial equipment.
Selection notes
What to Consider Before Selection
Review these practical considerations for key feel, trackball installation, operating environment and protection limits before selecting D-8606G.
Trackball Mounting Position
Horizontal installation is recommended for the mechanical trackball. When mounted vertically at 90°, gravity may affect the operating feel of the trackball.
Operating Environment
It is not recommended for environments with heavy oil, continuous moisture or direct water exposure. For these conditions, consider a more fully sealed keyboard and pointing-device solution.
Protection scope
The keyboard area is rated IP65 from the front, while the mechanical trackball is IP54. Do not treat the complete front surface or finished equipment installation as IP65.
Key Feel & Typing Force
The metal keys require more force to press than a standard office keyboard. This firmer key feel is normal for industrial stainless steel keyboards and should be considered for applications involving frequent or extended typing.
