Model D-8635T
D-8635T Panel-Mount Stainless Steel Keyboard with Touchpad
From CNC machinery and automated production lines to unmanned control systems and testing equipment, D-8635T provides keyboard input, cursor control and menu navigation through its 65+3-key layout and integrated touchpad, housed in a 329.8 × 99.8 mm stainless steel front panel.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Industrial Automation, CNC Machine Tools, Unmanned Systems, Self-Service Kiosks, Measurement & Testing Equipment
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
A Proven Choice for Industrial Equipment
D-8635T is one of DAVOLIN's best-selling industrial keyboards. Its well-proportioned design, practical key arrangement and built-in touchpad make it a popular choice for equipment manufacturers across different industries. The layout offers a good balance between everyday usability and integration into industrial control panels.
Beyond the standard stainless steel finish, customers can choose a black version or optional backlighting to match their equipment design and operating conditions. These options make D-8635T suitable for a broad range of applications, from CNC machinery and automation systems to unmanned equipment and self-service terminals.
| Front Panel Size | 329.8 × 99.8 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65+3 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled / Through-Etched & Translucent-Filled |
| Touchpad Type | Capacitive Touchpad | Touchpad Size | 60 × 45 mm |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: IP65 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Optional | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Engineered for Industrial Reliability
From physical durability and environmental protection to everyday operation, D-8635T is built to meet the demands of industrial equipment.
Industrial-Grade & Vandal-Resistant Design
The stainless steel construction and IK08 impact resistance help the keyboard withstand frequent operation, physical impacts and attempted damage in industrial and public-access equipment.
IP65 Front-Panel Protection
The IP65-rated front surface resists dust and water jets, helping protect the keyboard in environments where splashes, dust and routine cleaning are common.
Tactile Keys & Touchpad Control
Physical keys provide tactile feedback for command entry, while the integrated capacitive touchpad allows operators to move the cursor and select on-screen controls without a separate mouse.
Built for Demanding Operating Conditions
Designed for industrial environments with varying temperatures, humidity and electrostatic conditions, D-8635T supports reliable keyboard operation across a wide range of equipment applications.
Product video
See D-8635T in Detail
Take a closer look at the key layout, touchpad and stainless steel construction to better understand the product before selecting it for your equipment.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
D-8635T in Real-World Applications
Different equipment designs and operating environments call for different control interfaces, from public-access terminals to specialized industrial systems.
Two Different Applications, One Keyboard

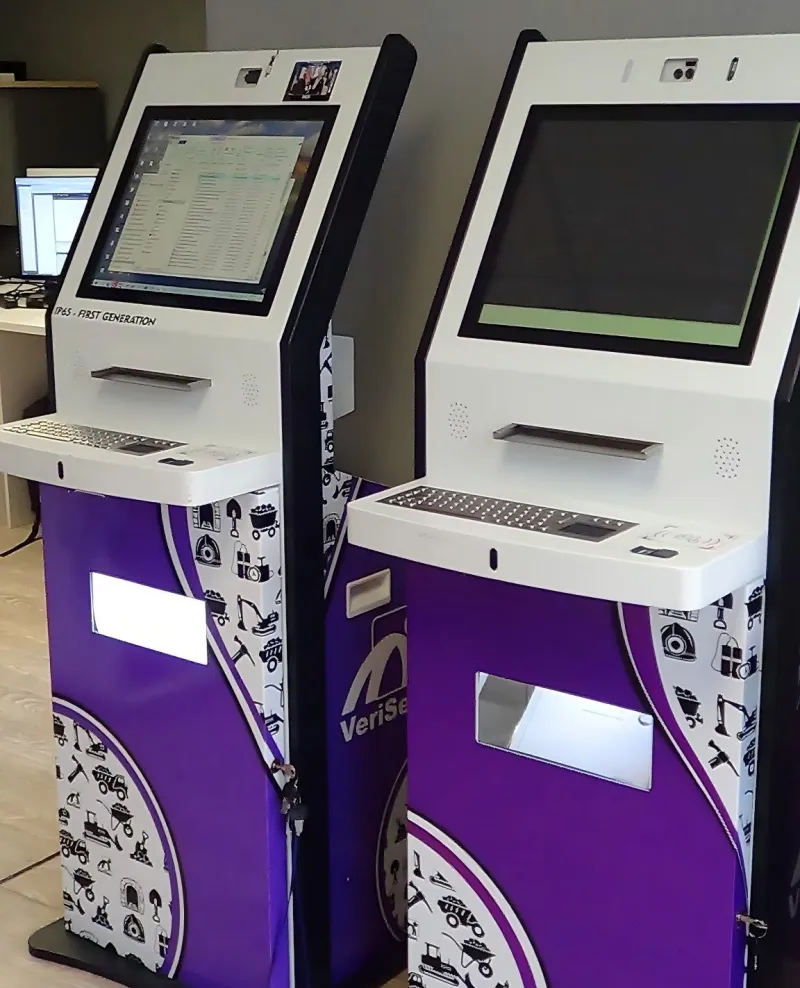

In self-service kiosks, D-8635T provides a fixed keyboard and touchpad interface for users interacting with terminal software.

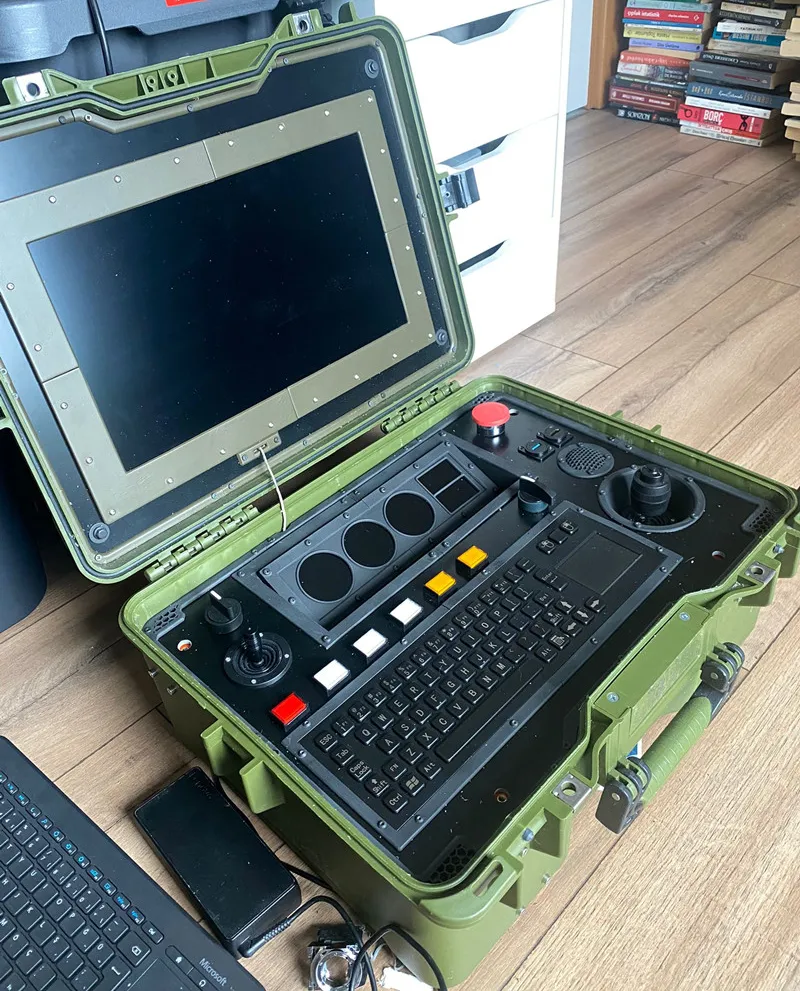

In a portable control console, the same model is integrated alongside a display, joysticks and other controls, demonstrating its use in a more specialized operator interface.
Selection notes
Check These Before You Choose
A few practical details to review when matching D-8635T to your equipment and operating requirements.
Host Connection
Check whether your system uses USB or PS/2, and confirm the required connector and cable arrangement before ordering.
Panel Installation
D-8635T is designed for rear panel mounting. Check the cutout dimensions, mounting points and clearance behind the panel against your equipment drawing.
IP65 Protection Scope
IP65 applies to the front keyboard surface only. The rear assembly and complete equipment enclosure require separate protection against dust and water.
Touchpad & Glove Compatibility
The capacitive touchpad works best with bare fingers or compatible thin gloves. If operators wear thick or insulating gloves, check touchpad suitability before selecting this model.
