Model D-8601
D-8601 Compact 65-Key Stainless Steel Panel Keyboard
With its 300 × 110 mm format, D-8601 gives equipment designers a complete 65-key input layout without using excessive panel space. It is suited to waterjet controls, UAV ground stations, inspection equipment and information kiosks, with USB or PS/2 interface options.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Waterjet Cutting Machines, Portable UAV Ground Control Station (GCS), Interactive Information Kiosk, Industrial Measurement & Inspection Equipment
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
A Compact Industrial Keyboard for Space-Limited Panels
D-8601 is a practical choice when panel space is limited but direct physical key input is still required. Its metal front panel and individual stainless steel keys provide an industrial-grade interface for installations exposed to frequent use or potential physical abuse.
The front operating surface is rated IP65 for protection against dust ingress and water jets, and the standard design is specified for operation from −40 °C to +70 °C.
| Front Panel Size | 300 × 110 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: IP65 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Non-backlit | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Choose More Than a Standard Key Layout
D-8601 can be specified around the realities of the application—from a vandal-resistant metal operating surface to USB connection, black keys and accessible Braille markings.
Vandal-Resistant Metal Key Surface
The stainless steel front panel and individual metal keys help the keyboard withstand frequent operation and deliberate physical abuse in industrial or public-facing equipment.
Plug-and-Play USB Connection
The USB version connects directly to compatible host systems without installing a separate driver, simplifying integration with industrial PCs and control terminals.
Black-Key Version Available
A black-key version can be produced for equipment designs that require stronger visual contrast or a darker control-panel appearance.
Braille Key Layout Available
Braille markings can be incorporated into the key layout for accessibility-focused terminals and equipment. Key symbols and Braille content are confirmed against approved artwork before production.
Product video
Explore the D-8601 Beyond the Datasheet
View the D-8601’s compact 65-key layout, stainless steel key surface and rear-panel mounting format. Use the video to assess its fit for your equipment panel before requesting drawings or a quotation.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
D-8601 in Cutting and Inspection Equipment

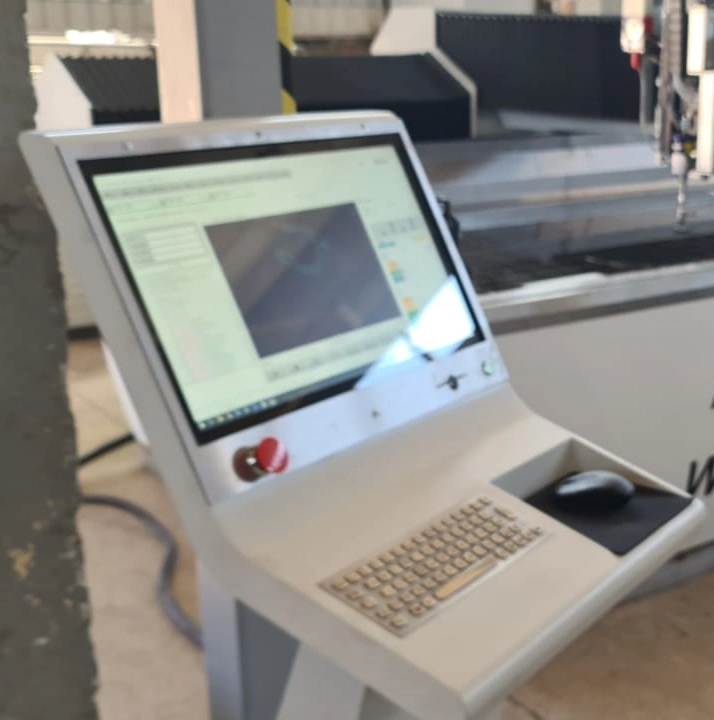

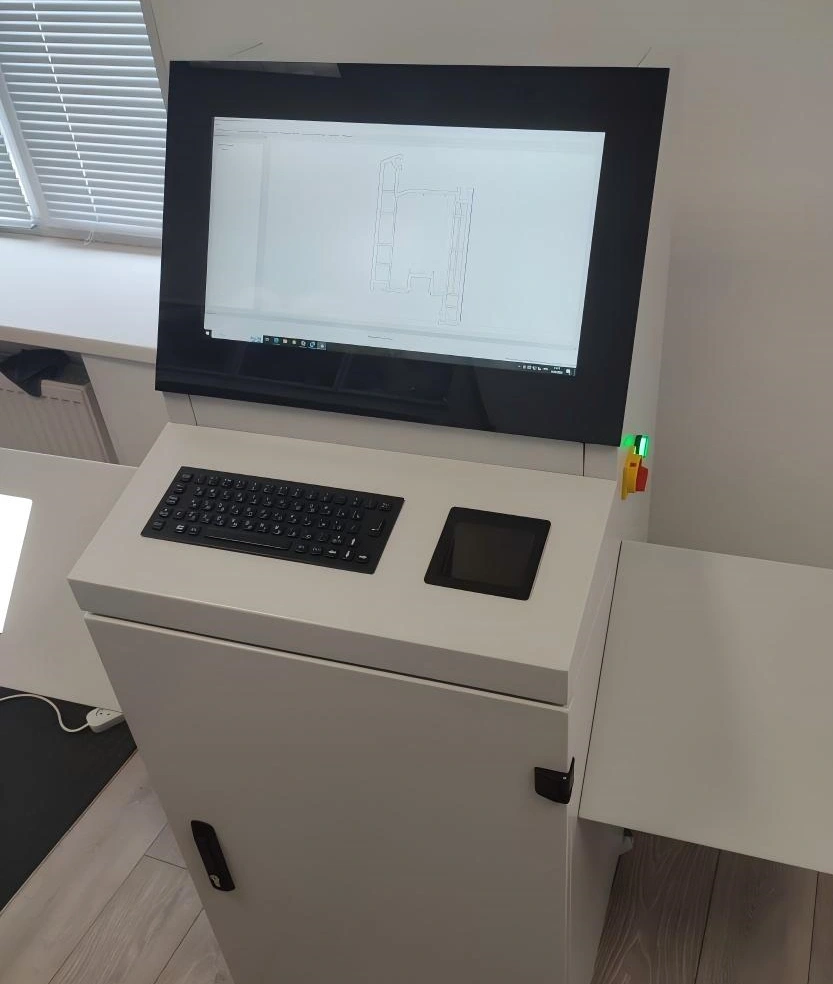

Application references showing D-8601 integrated into a waterjet cutting machine and an industrial measurement and inspection system.
Two fixed-panel integration examples
These examples show the D-8601 used as a built-in operator keyboard rather than a separate desktop peripheral. One installation supports direct input at a waterjet cutting machine; the other places the keyboard within a measurement and inspection console.
For either application, confirm the panel cutout, mounting arrangement, cable exit and host interface before the equipment enclosure is finalised.
Selection notes
Check These Limits Before You Specify D-8601
D-8601 is designed for protected, fixed-panel use. Review the protection boundary, input feel, operating environment and required installation hardware before finalising your configuration.
IP65 Is Limited to the Front Surface
The IP65 rating applies to the stated front operating surface only. It does not make the complete keyboard, rear housing or installed equipment wash-down proof.
Industrial Key Feel
The metal keys are designed for durability and fixed-panel use, not the light travel or typing comfort of an office keyboard. Request a sample when frequent text entry is a primary requirement.
Limits in Contaminated Environments
This model is not intended for unsealed installations with heavy airborne dust, oil mist, standing moisture or frequent wash-down. Consider a fully sealed keyboard where these conditions are routine.
Installation Hardware
Unless stated in the quotation, mounting fasteners, installation tools and enclosure sealing accessories are not included. Confirm any required hardware before ordering.
