Model D-8656

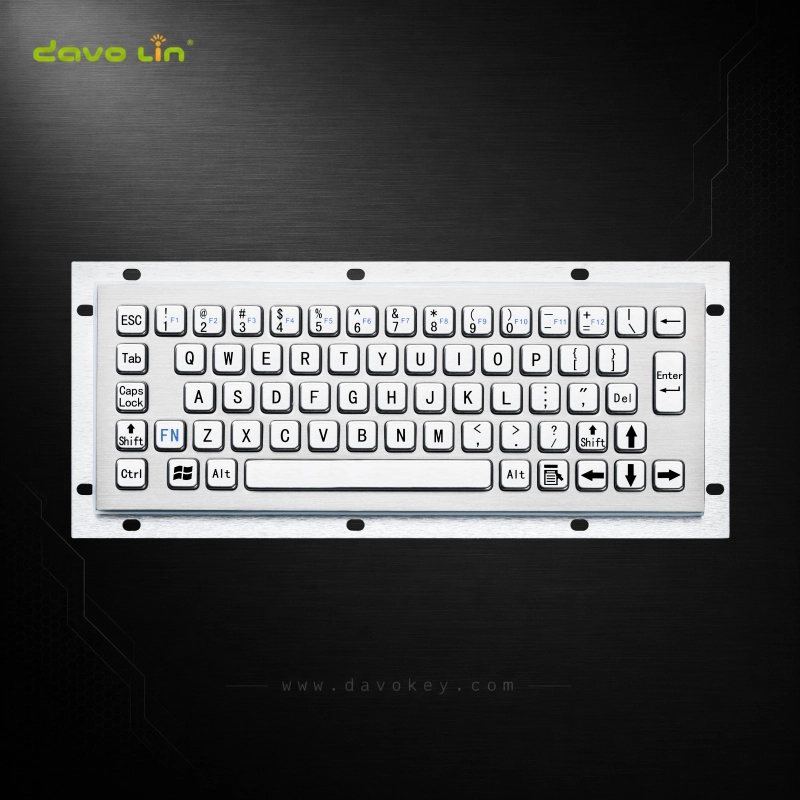

D-8656 Smaller Size Panel-Mount Stainless Steel Keyboard
When panel space is restricted but a dedicated industrial keyboard is still required, the D-8656 provides a smaller 65-key stainless steel solution in a 270 × 100 mm panel-mount format. It features a 304 stainless steel front panel, rear mounting structure, USB or PS/2 connectivity and IP65 front-surface protection.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB / PS/2
- Applications
- CNC Milling & Turning Machines, EDM & Wire-Cutting Machines, CNC Plasma & Laser Cutting Machines, Industrial & Public-Access Kiosks, Medical Diagnostic Equipment
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
Vandal-Resistant Industrial Keyboard
D-8656 combines stainless steel keys with a robust metal panel construction for public-access and industrial equipment where resistance to frequent use, attempted damage and routine cleaning matters. IP65 protection applies to the exposed front operating surface, helping shield the keyboard from dust and water ingress on the user-facing side.
The 65-key layout keeps familiar alphanumeric input while using an Fn key to access F1–F12 functions without adding a separate function-key row. In addition to the standard stainless steel finish, black electroplated and Braille-marked versions can be specified for projects that require a different appearance or improved accessibility.
| Front Panel Size | 270 × 100 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65 keys | Mounting style | Rear Panel Mount |
| Interface | USB / PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: IP65 | ESD Protection | Contact ±6 kV, Air ±8 kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5 V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Non-backlit | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Reliable Input, Configured for Your Equipment
Long-life key switching, durable legend processes and a wide operating range are combined with selectable finishes, Braille markings and language layouts for project-specific requirements.
Long-Life Key Switching
The silicone switching structure is rated for more than 2 million key operations, supporting equipment designed for frequent, long-term daily use.
Durable Key Legend Options
Key legends can be produced by laser engraving or by chemical etching with paint infill. The marking method can be selected according to the required key finish, legend contrast and graphic design, helping maintain clear identification through long-term use.
Wide Operating Temperature Range
D-8656 is specified for operation from −40 °C to +70 °C, supporting equipment installed in unheated, outdoor or temperature-variable industrial environments.
Selectable Appearance and Marking
The standard stainless steel version can be adapted with a black electroplated finish, Braille markings or a custom language layout where required.
Product video
See D-8656 in Detail
Review the product layout and construction before requesting a sample, drawing or quotation.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
From CNC Control to Clinical Analysis
D-8656 provides a durable physical input interface for industrial operator consoles and specialised analysis equipment.
Application and integration references

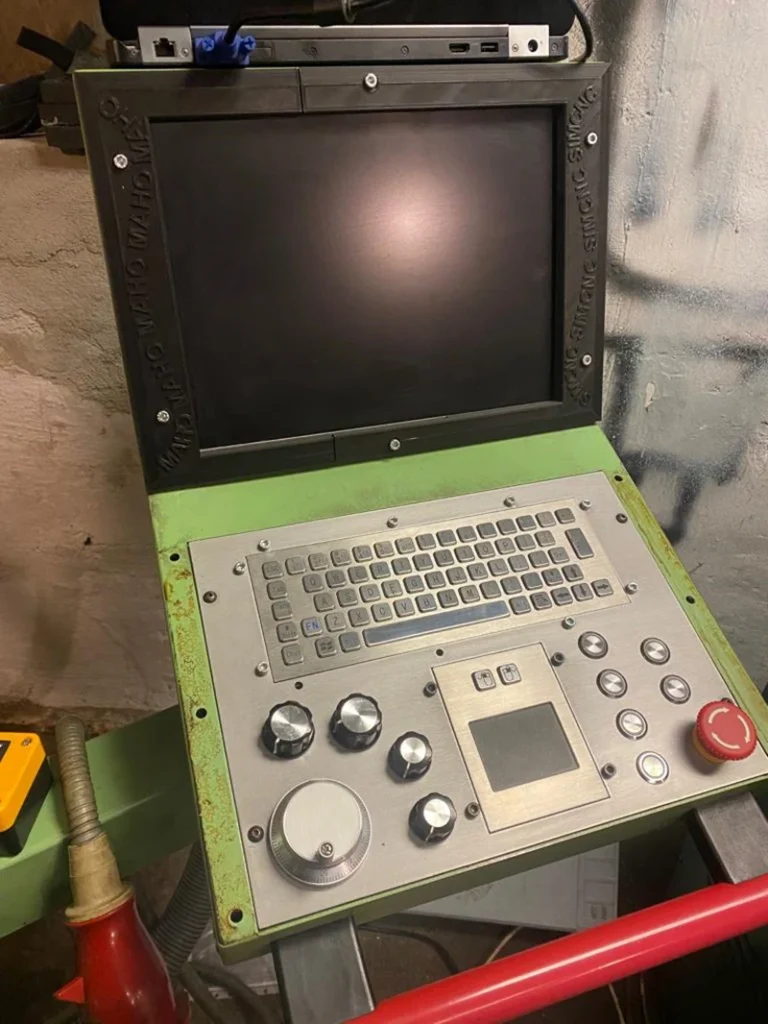

CNC Machine Operator Console, D-8656 is integrated into the CNC operator console for program entry, setup and routine machine control. Its stainless steel front surface withstands frequent handling in an industrial workshop.

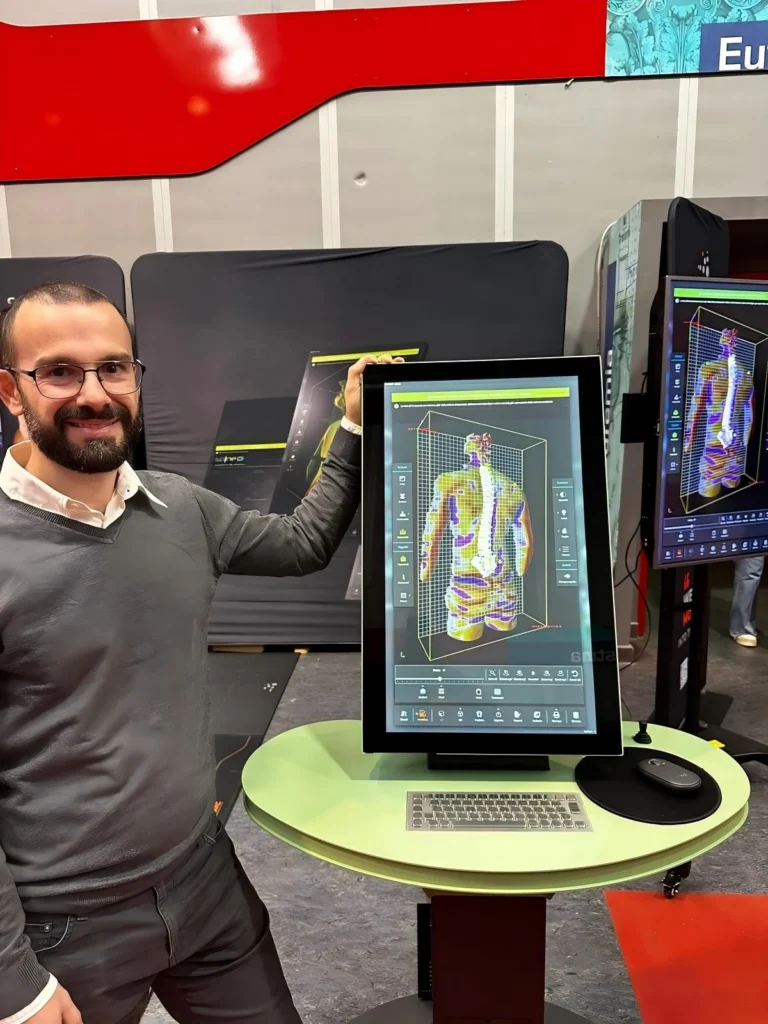

Spine 3D Posture Analysis System, The keyboard is used beside the visual analysis display for system navigation and operator input. Durable key markings help maintain a clear, professional interface for daily assessments.
Selection notes
Confirm these points before ordering
Review these points to confirm that the standard model is suitable for your equipment.
Connection and Cable
Confirm whether the equipment uses USB or PS/2. Check the connector, cable length and cable exit before production.
Panel Cutout and Rear Clearance
Check the panel cutout, mounting-hole positions and space behind the panel. Please use the product drawing for final confirmation.
Front-Surface IP65 Protection
IP65 protection applies to the front operating surface only. The rear side requires separate protection from the equipment enclosure.
Layout, Language and Braille
Confirm the keyboard language, special key labels and Braille markings. Please provide an approved layout file before production.
