Model D-8602

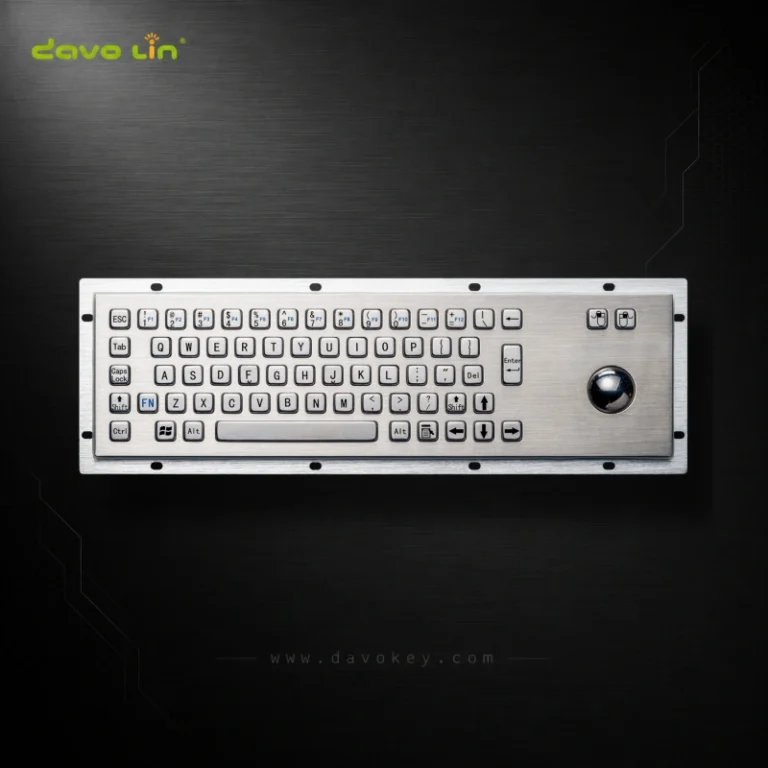

D-8602 Panel-Mount Stainless Steel Keyboard with 38 mm Trackball
Built for control panels that cannot rely on a separate mouse, D-8602 pairs a 65+2-key stainless steel layout with a 38 mm mechanical trackball. Its 392 × 110 mm rear-mount format provides a permanent physical input point for typing, command selection and on-screen navigation, with USB or PS/2 connectivity available.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Industrial Automation, CNC Machines, Interactive Kiosks, Self-Service Terminals, Public Access Terminals, Ground Control Stations (GCS)
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
A Long-Running Trackball Keyboard Design
D-8602 is one of DAVOLIN’s long-standing best-selling models for equipment panels that need keyboard input and physical cursor control in one fixed position. Its mechanical trackball keeps text entry, function commands and on-screen navigation at the panel without relying on a separate mouse.
A black version is also available for equipment with a darker panel design, alongside the standard stainless steel appearance.
| Front Panel Size | 392 × 110 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65+2 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled |
| Trackball Type | Mechanical Trackball | Trackball Diameter | 38 mm Stainless Steel Ball |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: Keyboard Area IP65, Trackball IP54 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Non-backlit | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
A Rugged Trackball Keyboard for Equipment Panels
D-8602 brings together physical cursor control, impact resistance and reliable operation across a wide temperature range for demanding equipment panels. A black finish option also helps the keyboard match the final machine design.
Vandal-Resistant Construction
Rated to IK08 impact resistance, the stainless steel front panel helps protect the operator interface against hard everyday use and deliberate damage.
Mechanical Cursor Control
The 38 mm mechanical trackball provides direct cursor control without relying on a capacitive touch surface. It is a practical choice for operators who prefer physical input or wear standard work gloves.
Wide Operating Temperature Range
Rated for operation from −40°C to +70°C, D-8602 supports equipment panels exposed to cold starts, warm enclosures and changing site conditions.
Black Finish Option
In addition to the standard stainless steel appearance, D-8602 can be supplied in black to match dark control panels and finished equipment designs.
Product video
See D-8602 Under Deliberate Damage
In this video, we put the DAVOLIN D-8602 stainless steel industrial keyboard with trackball through a series of aggressive impact and destructive tests using different hand tools.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
From Fiber Laser Control to Self-Service Kiosks
Two installation references show D-8602 as a fixed input component in both industrial machinery and public-facing terminals.
One Keyboard, Two Equipment Roles

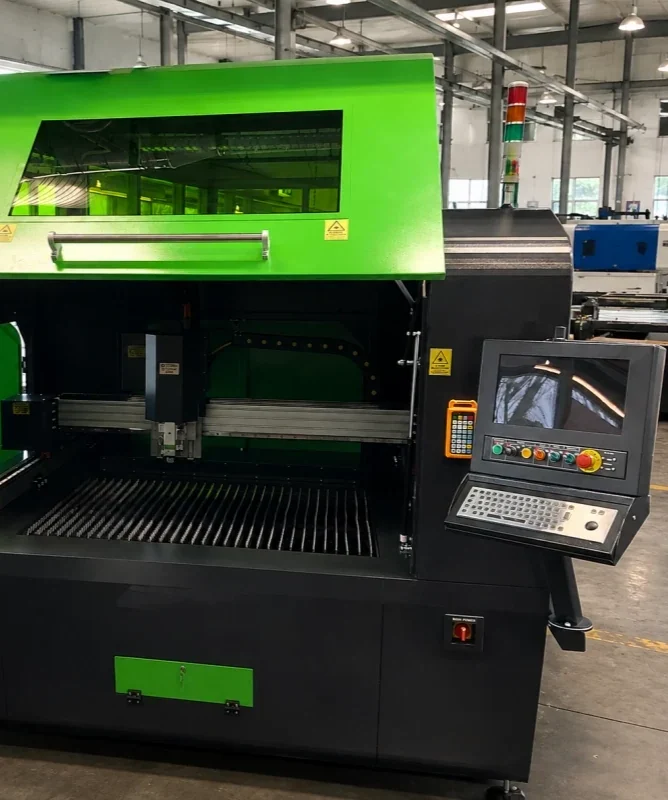

At left, D-8602 is fitted beneath the display of a European fiber laser cutting machine. The keyboard, function keys and trackball keep program entry and screen navigation at the machine console.

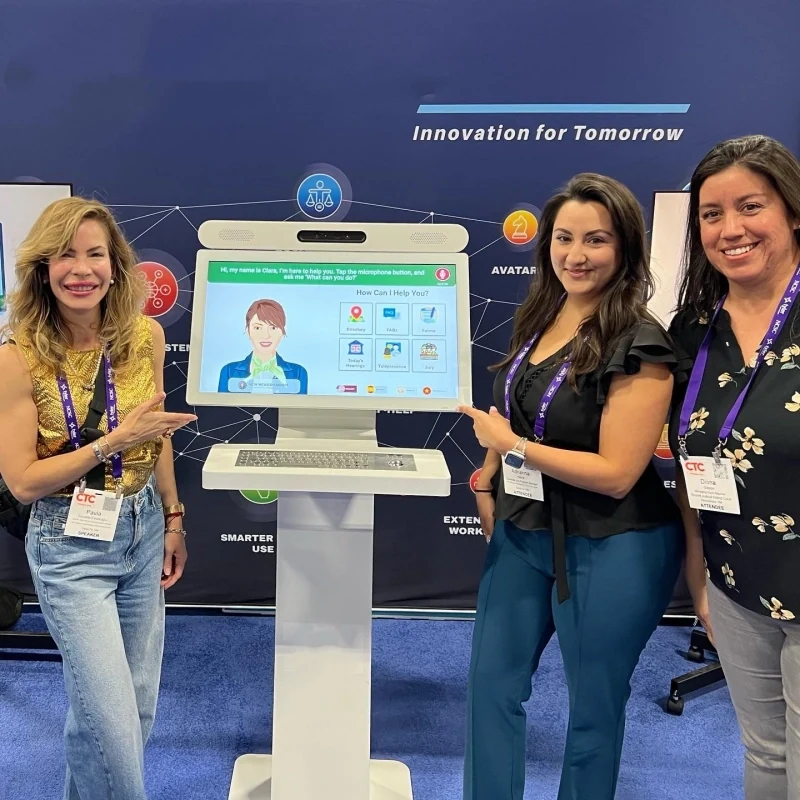

At right, the same model is integrated into a U.S. self-service kiosk. Its compact stainless steel layout gives the finished terminal a dedicated physical input interface instead of a separate office keyboard or mouse.
Selection notes
Check Before Choosing D-8602
Confirm the installation angle, expected typing use and operating environment alongside the stated front-surface protection.
Front Protection Limits
IP65 applies only to the front keyboard area; the trackball is rated IP54. These ratings do not describe protection of the complete installed machine or enclosure.
Trackball Installation Angle
Vertical and steep-angle mounting is possible, but a horizontal panel gives the smoothest trackball movement. Confirm the intended position before ordering.
Typing Feel
The metal key construction prioritises durability and panel integration, not the light feel of an office keyboard. Request a sample if extended typing comfort is critical.
Heavy Contamination
This model is not recommended for heavy oil, persistent moisture or high levels of dust and debris around the trackball. Choose a fully sealed silicone keyboard for frequent wash-down applications.
