Model D-8635G
D-8635G Panel-Mount Stainless Steel Keyboard with Removable Trackball
Built for compact operator consoles, D-8635G combines a 65+3-key stainless steel keyboard with a removable 36 mm trackball. The 329.8 × 99.8 mm rear-panel-mount design keeps cursor control close at hand, while allowing the trackball to be removed for cleaning or replacement.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Ground Control Stations (GCS), Laser Cutting Machines, Remotely Operated Vehicles (ROVs), Industrial Automation Systems, Information Kiosks
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
A Proven Keyboard for Serviceable Control Panels
D-8635G combines a stainless steel keyboard with a removable mechanical trackball for control-panel applications. The trackball can be taken out for routine cleaning or replacement, allowing maintenance without removing the complete keyboard from the panel.
Optional backlighting is available for both the keys and trackball where clear visibility is required. As a long-established and frequently ordered DAVOLIN standard model, D-8635G is suited to equipment builders looking for a compact keyboard with practical long-term serviceability.
| Front Panel Size | 329.8 x 99.8mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65+3 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled / Through-Etched & Translucent-Filled |
| Trackball Type | Mechanical Resin Trackball | Trackball Diameter | 36 mm |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: Keyboard Area IP65, Trackball IP54 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Optional | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Built for Control Panels That Stay in Service
For equipment builders, selecting a panel keyboard is about more than dimensions. Daily maintenance, operator visibility, host connection and available console space all affect how well the finished equipment works. D-8635G addresses these practical decisions in one panel-mounted input solution.
Removable Mechanical Trackball
The 36 mm mechanical trackball can be removed for routine cleaning or replacement without removing the complete keyboard from the control panel.
Optional Backlit Keys and Trackball
Backlighting can be specified for both the key area and trackball to keep controls visible in dim cabins, control rooms and equipment enclosures.
Ready-to-Use USB Connection
On USB versions, the keyboard and trackball are recognised as standard input devices on supported systems without additional driver installation.
Rugged Build, Compact Footprint
The stainless steel front panel and keys are built for frequent equipment use, while the compact rear-panel-mount format helps conserve space in operator consoles.
Product video
A Closer Look at D-8635G
Review the front-panel layout, full key arrangement and removable trackball details before requesting a sample, technical drawing or quotation.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference

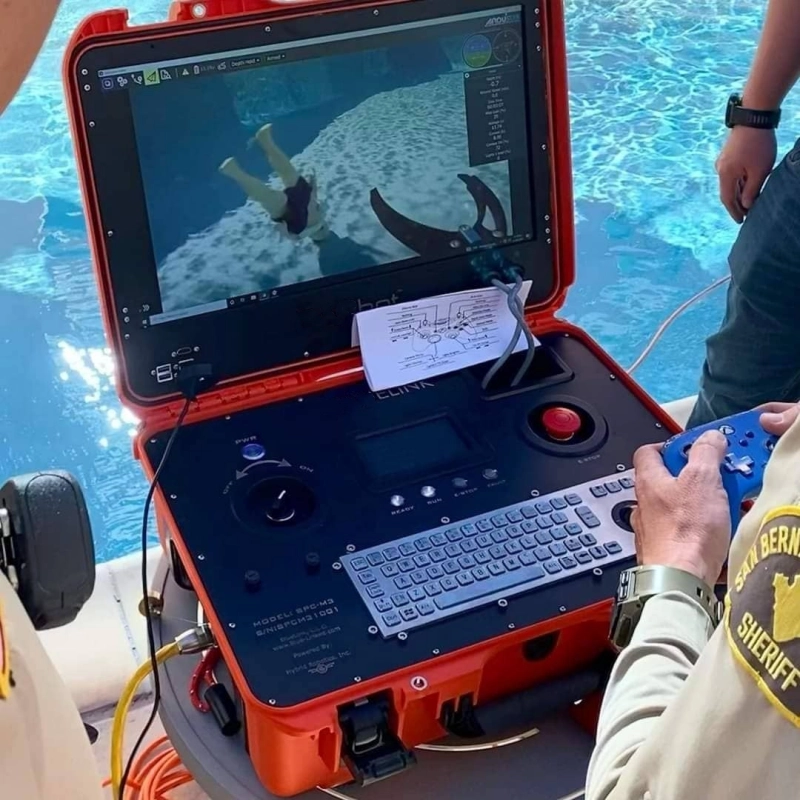

D-8635G in an ROV Surface-Control Console
A panel-mounted input solution for portable control systems used in underwater search and recovery work.
ROV Control in the Field
These images document a U.S. public-safety ROV training deployment for underwater search and recovery. D-8635G is integrated into the portable surface-control console, bringing keyboard input, function keys and trackball navigation together below the operator display.
The setup shows how a panel-mounted keyboard can support video and sonar-based ROV operation at the water’s edge without relying on separate desktop peripherals.
Selection notes
Confirm These Points Before Ordering
Review the host connection, mounting orientation, exposure conditions and maintenance requirements before selecting the standard configuration.
USB Connection Planning
The standard USB version uses two independent connections: one for the keyboard and one for the trackball. If the host has only one available USB port, request a single-USB configuration before ordering.
Keyboard Installation Orientation
Vertical and angled panel installations are supported. A horizontal position is recommended for the smoothest trackball feel and most consistent cursor response. Confirm the intended orientation before finalising the panel design.
Water and Contamination Exposure
IP65 applies to the keyboard front surface and IP54 to the trackball area. This model is not intended for frequent wash-down, continuous moisture or heavy contamination.
Trackball Maintenance
Keep the ball and trackball recess free of dust, metal debris and sticky contaminants. Set cleaning intervals to suit the actual operating environment.
