Model D-8603

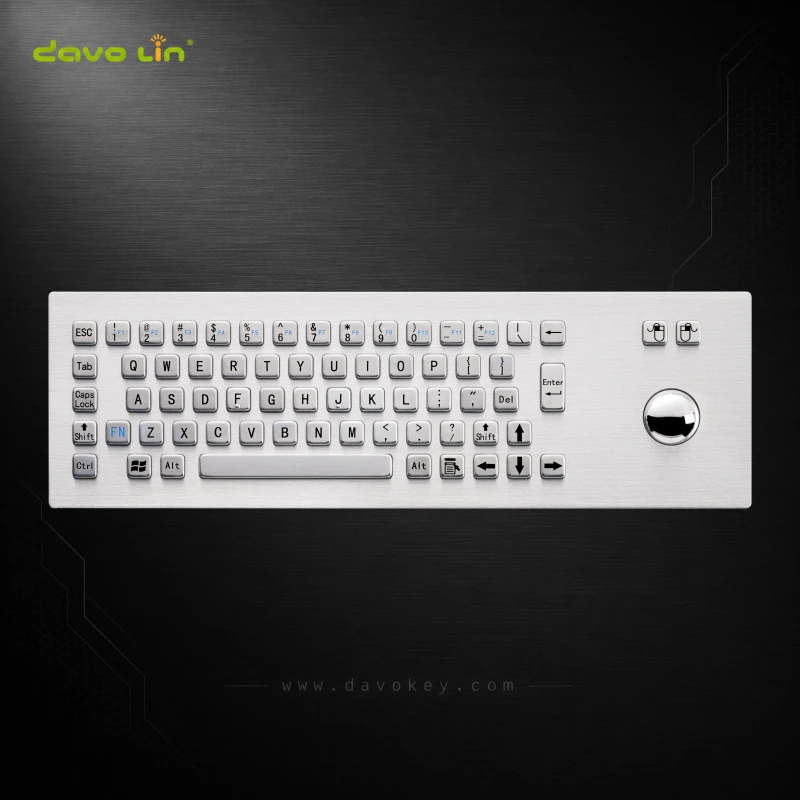

D-8603 Front Panel-Mount Stainless Steel Keyboard with Trackball
Designed for industrial control panels, D-8603 combines a stainless steel keyboard with a 38 mm mechanical trackball in a 400 × 124 mm front panel. Its front-mount design provides integrated keyboard and cursor control with straightforward installation from the operator side.
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB / PS/2
- Applications
- Ground Control System Unit, Industrial Control Console, Hydraulic Valve Test Bench, Interactive Kiosks, Marine Navigation Console
- Lead time
- 3 working days
- MOQ
- 1 piece
Product introduction
Proven Front-Mount Industrial Keyboard
D-8603 is one of DAVOLIN’s established and widely used front panel-mount keyboards, developed for industrial equipment that requires durable keyboard and pointer control in a single unit. The FN key provides access to additional functions without adding extra keys, helping keep the overall layout practical for machine and equipment integration.
Its vandal-resistant stainless steel construction makes it a frequent choice for Ground Control System (GCS) units, interactive kiosks and other operator control equipment. A black version is also available for applications that require a darker appearance to match the surrounding console or enclosure.
| Front Panel Size | 400 × 124 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 65+2 keys | Mounting style | Front Panel Mount |
| Interface | USB / PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled |
| Trackball Type | Mechanical Trackball | Trackball Diameter | 38 mm Stainless Steel Ball |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: Keyboard Area IP65, Trackball IP54 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK08 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Non-backlit | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Model-specific details that affect integration
Review these standard-model details when matching the keyboard to an equipment panel and host system.
Mechanical Trackball Control
The integrated mechanical trackball provides precise cursor control without requiring a separate mouse, keeping keyboard and pointer functions together on the operator panel.
Front Panel-Mount Design
Designed for installation from the front of the equipment panel, making the keyboard easy to integrate into consoles, kiosks and control enclosures.
Long-Life Metal Keys
Metal key switches are rated for up to 2 million operations, supporting frequent use on industrial control equipment.
Plug-and-Play USB
The USB version works as a standard HID device with plug-and-play connection, requiring no additional driver for normal operation.
Product video
See D-8603 in Detail
Review the product layout and construction before requesting a sample, drawing or quotation.
Click Play to load this video and allow YouTube content.
Visit the DAVOLIN YouTube channelApplication reference
Proven in Real-World Applications
See how D-8603 integrates into different equipment designs, from a hydraulic valve test bench to a touch screen kiosk.
Application and integration references

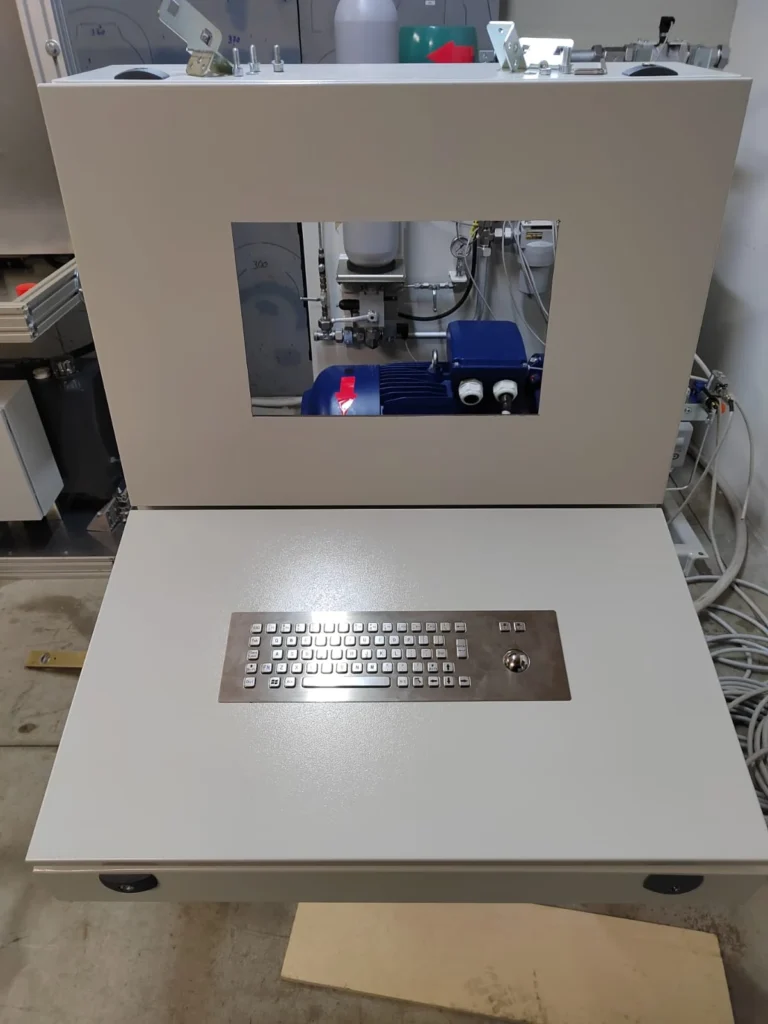

D-8603 is used across different types of operator equipment. On a hydraulic valve test bench, the integrated keyboard and trackball provide direct control from the machine panel.

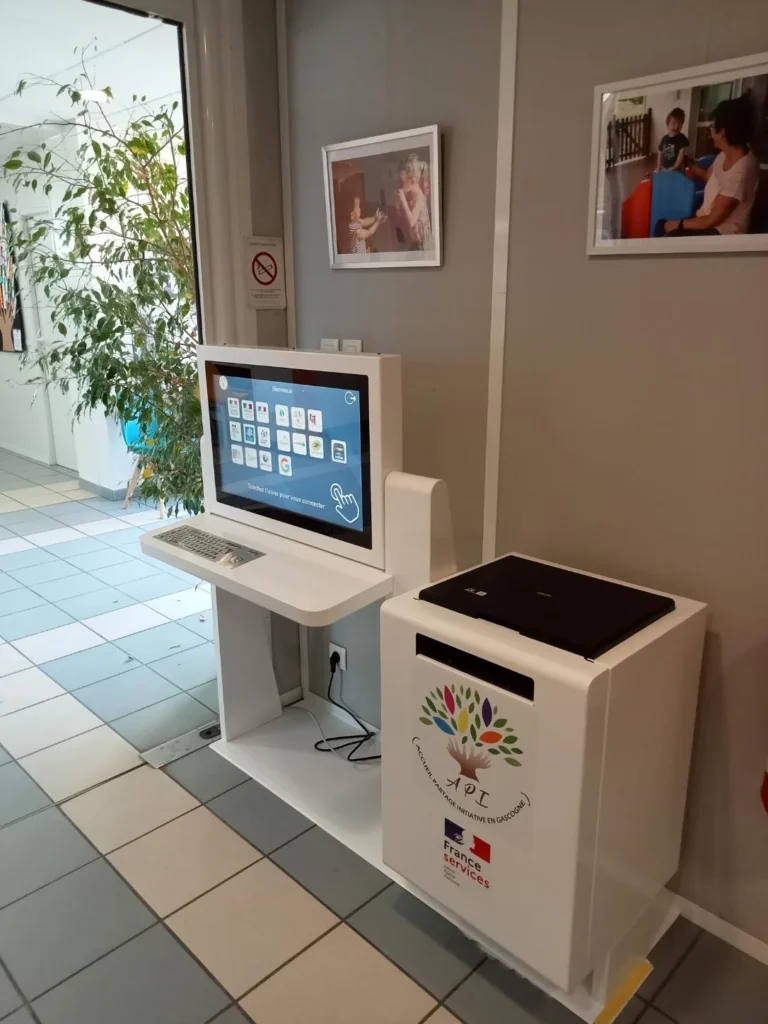

In a touch screen kiosk, the keyboard provides a separate physical input option alongside the display, giving users an alternative to touch-only operation.
Selection notes
Know Before You Choose
Review these model-specific considerations to make sure D-8603 fits your mounting position, operating environment and host system.
Mounting Orientation
Horizontal installation is recommended. Mounting the keyboard vertically at 90° may change the operating feel and movement of the mechanical trackball.
Operating Environment
Not recommended for environments with heavy oil, continuous moisture or direct water exposure around the trackball. Consider a more fully sealed solution for these conditions.
Protection scope
The stated protection is Front Surface Only: Keyboard Area IP65, Trackball IP54. Do not treat this as the protection rating of the complete machine or enclosure unless the full installation has been verified.
Host Compatibility
USB works with most standard systems, but compatibility with some legacy or less common operating systems and embedded controllers should be confirmed before ordering.
