Model D-8630G

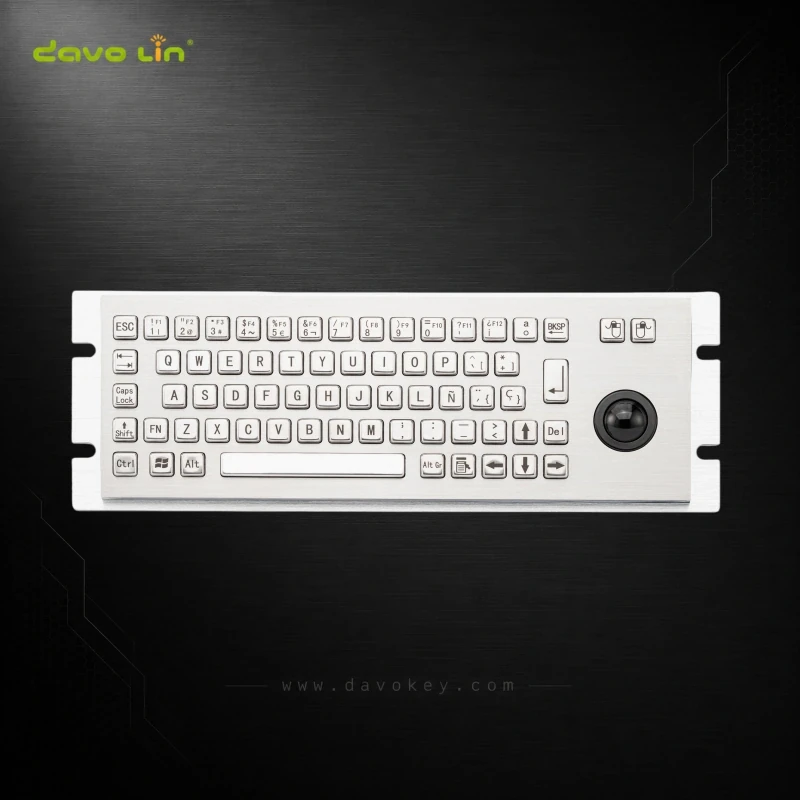

D-8630G Panel-Mount Stainless Steel Keyboard with Trackball
Designed for ground control stations, ROV consoles and industrial automation systems, D-8630G combines a 68+2-key layout with an integrated trackball in a compact 288 × 101 mm front panel. Its fixed pointing control eliminates the need for a separate mouse, making it suitable for equipment consoles where available operating space must be carefully managed
- OS Compatibility
- Windows / Linux / Android / macOS
- Interface
- USB or PS/2
- Applications
- Ground Control Stations (GCS), Remotely Operated Vehicles (ROVs), Industrial Automation Systems, Information Kiosks
- Lead time
- 10 working days
- MOQ
- 1 piece
Product introduction
Physical Cursor Control for Specialized Equipment
In ground control stations, ROV consoles and industrial automation systems, operators often need to switch between keyboard commands and cursor-based software controls. D-8630G brings both input methods into one fixed assembly, allowing equipment designers to build operator interfaces without allocating additional space for a separate mouse.
Unlike a touchpad, the mechanical trackball allows cursor movement by rolling a physical ball, without requiring finger movement across a flat sensing surface. This provides an alternative pointing method for equipment manufacturers who prefer physical cursor control in their operator consoles.
| Front Panel Size | 288 × 101 mm | Material | 304 Stainless Steel + Aluminum Alloy |
|---|---|---|---|
| Number of Keys | 68+2 keys | Mounting style | Rear Panel Mount |
| Interface | USB or PS/2 | Key Legend | Laser Engraved / Etched and Ink-Filled |
| Trackball Type | Mechanical Resin Trackball | Trackball Diameter | 25 mm |
| Keyswitch Technology | Conductive Carbon Pills | Keyswitch Lifespan | >2 Million Operations |
| Protection Rating | Front Surface Only: Keyboard Area IP65, Trackball IP54 | ESD Protection | Contact ±6kV, Air ±8kV |
| Operating Temperature | -40°C to +70°C | Vandal Resistance | IK07 |
| Supply Voltage | 5V DC (±5%) | Certification | CE, RoHS, FCC |
| Backlight | Non-backlit | EMC Compliance | EN 55032, EN 55035 |
| Cable Length | 2.0 m | OS Compatibility | Windows / Linux / Android / macOS |
*Custom language layouts are available on request, including Spanish, Portuguese, German, French, Italian, Nordic, Russian, Turkish, Arabic, Brazilian, and many other regional keyboard layouts.
*Compatibility with legacy, uncommon or custom operating systems is not guaranteed and requires verification.
Product features
Model-specific details that affect integration
Review these standard-model details when matching the keyboard to an equipment panel and host system.
Mechanical Trackball Control
The integrated 25 mm mechanical trackball provides physical cursor control by rolling the ball, offering an alternative to touchpads for operators who prefer tactile pointing input.
Vandal-Resistant Metal Construction
The stainless steel front panel provides a durable operating surface, with IK08 impact resistance helping protect against accidental impacts and rough handling.
Wide Temperature & ESD Protection
Designed for operation from −40°C to +70°C, with electrostatic discharge protection to support use in industrial control systems exposed to varying environmental and electrical conditions.
USB Plug-and-Play Operation
On compatible USB HID systems, the keyboard and trackball can operate without additional driver installation, simplifying integration with industrial computers and control systems.
Product video
See D-8630G in Detail
Review the product layout and construction before requesting a sample, drawing or quotation.
Visit the DAVOLIN YouTube channelProduct video for D-8630G is not currently available.
Application reference
Industrial Applications of D-8630G
Explore how a trackball-equipped keyboard can fit into industrial automation and ROV control console designs, where operators need access to both physical keys and software controls.
Two Different Control Environments

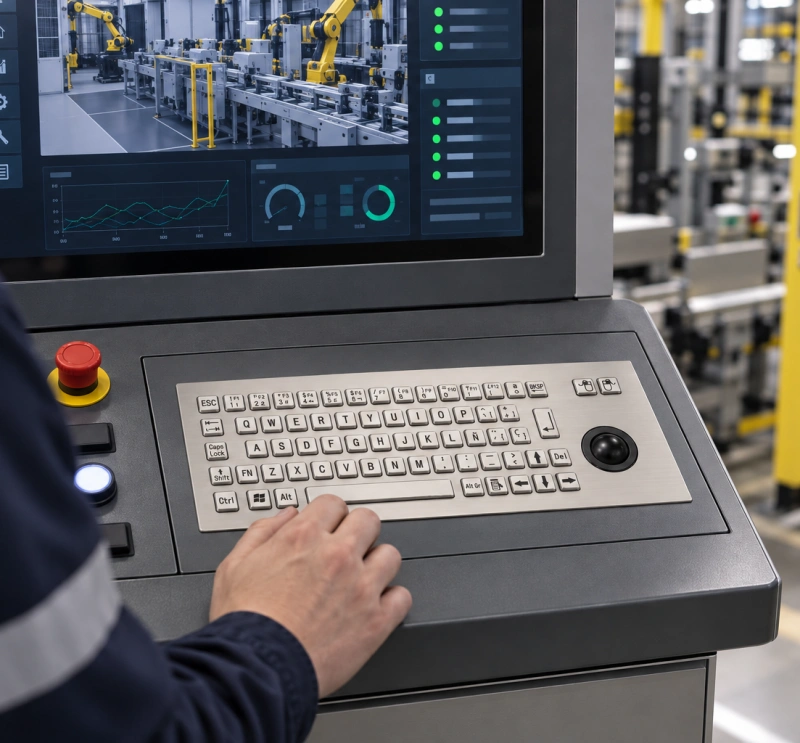

In industrial automation systems, D-8630G can be integrated into machine control panels for command entry, parameter adjustments and software navigation.

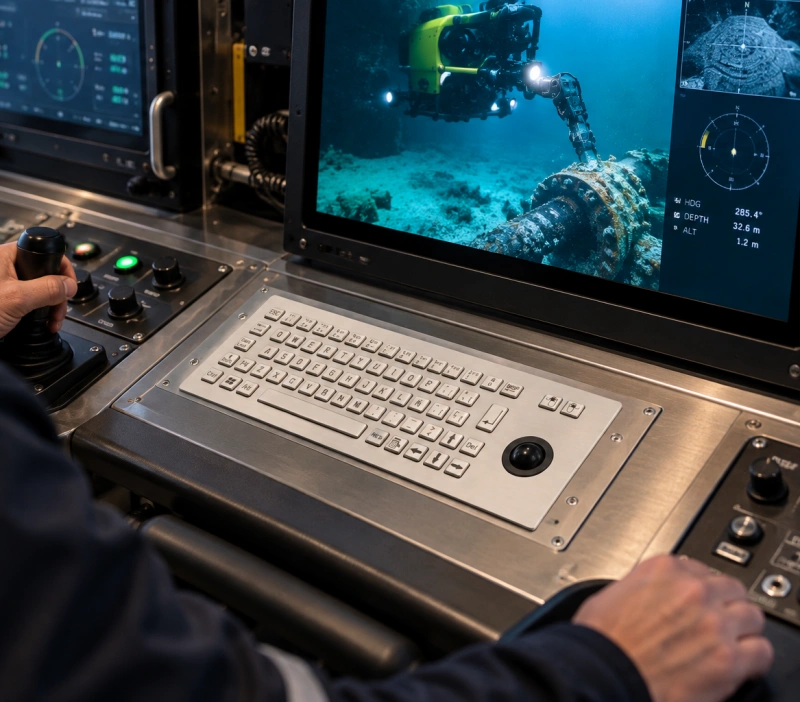

In ROV control consoles, the keyboard and trackball can provide input for on-screen menus, camera settings and other software functions, alongside dedicated joysticks and controls.
Selection notes
Before Selecting D-8630G
Check these practical details to ensure D-8630G matches your equipment design, operating environment and maintenance requirements.
Trackball Maintenance
The mechanical trackball may require periodic cleaning to maintain smooth cursor movement. Consider dust exposure and maintenance access when selecting it for your equipment.
Panel Installation
Check the panel cutout, mounting points and rear clearance against the D-8630G installation drawing. Allow sufficient space for connectors and cable routing.
IP65 Keyboard / IP54 Trackball
The front keyboard area is rated IP65, while the mechanical trackball is rated IP54. These ratings do not extend to the rear assembly or the complete equipment enclosure.
Trackball vs. Touchpad
D-8630G uses a mechanical trackball for cursor control. If your application requires a flat pointing surface or higher front-surface water protection, consider the D-8630T touchpad version.
